DECAPPER

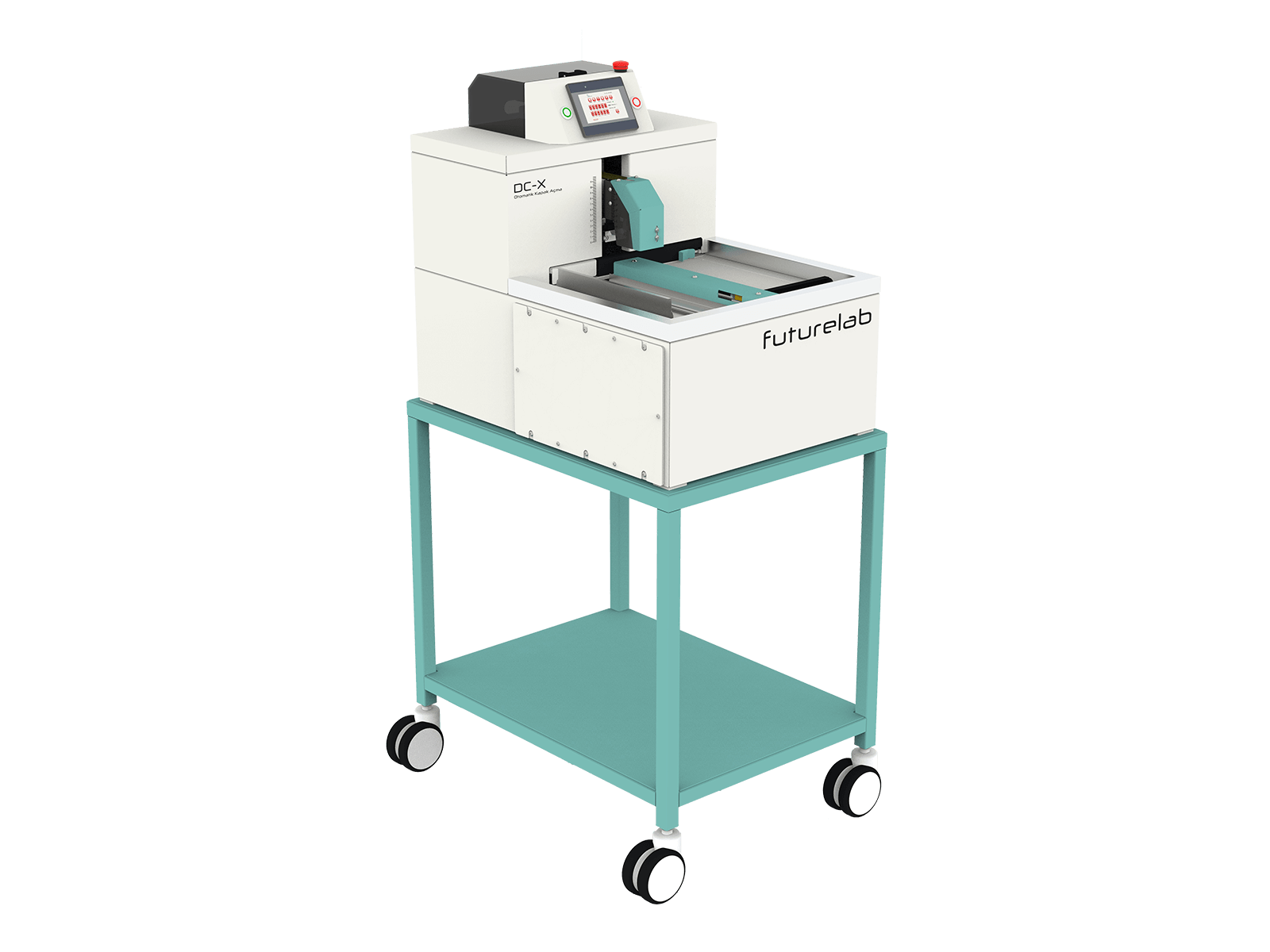

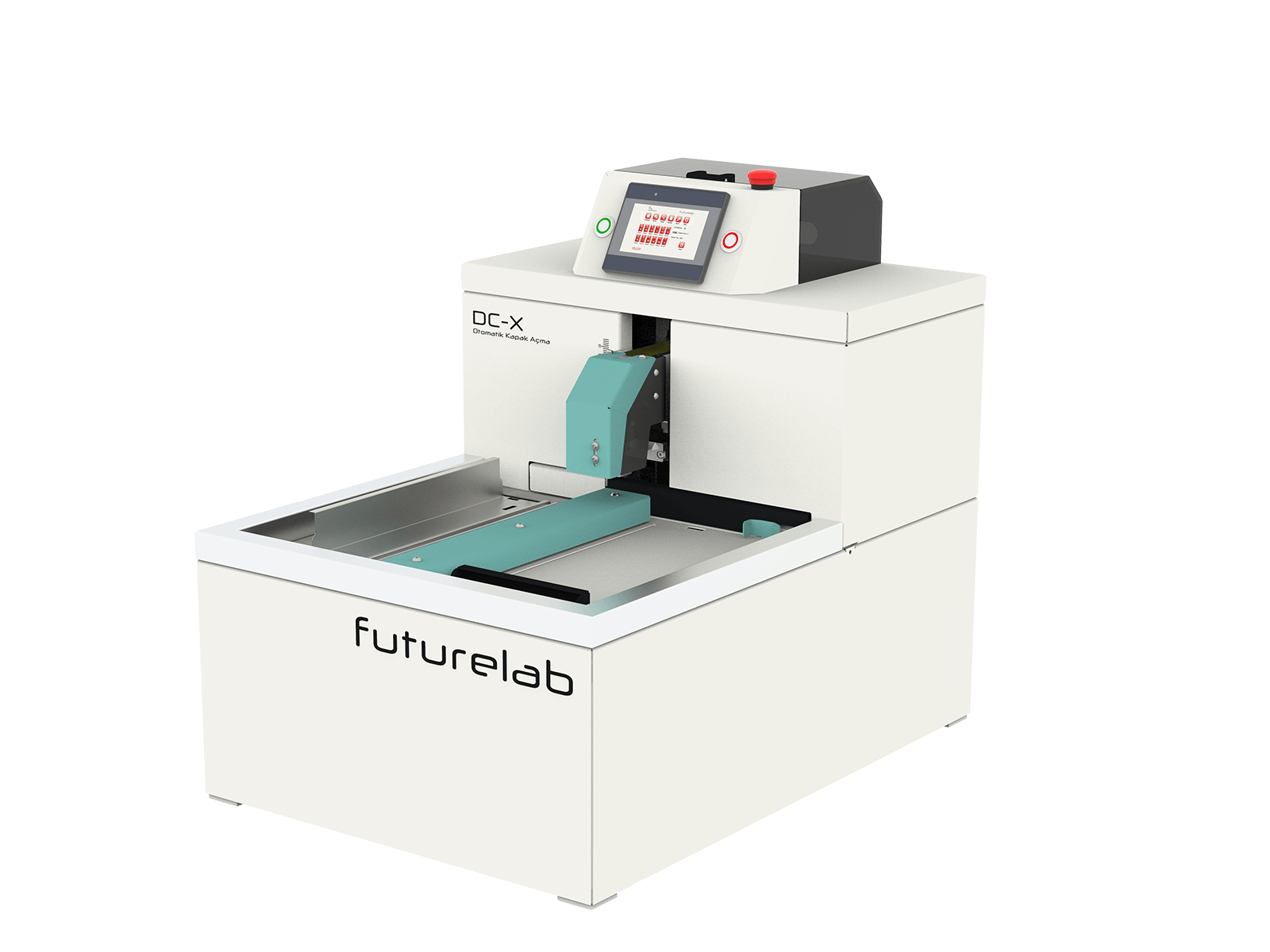

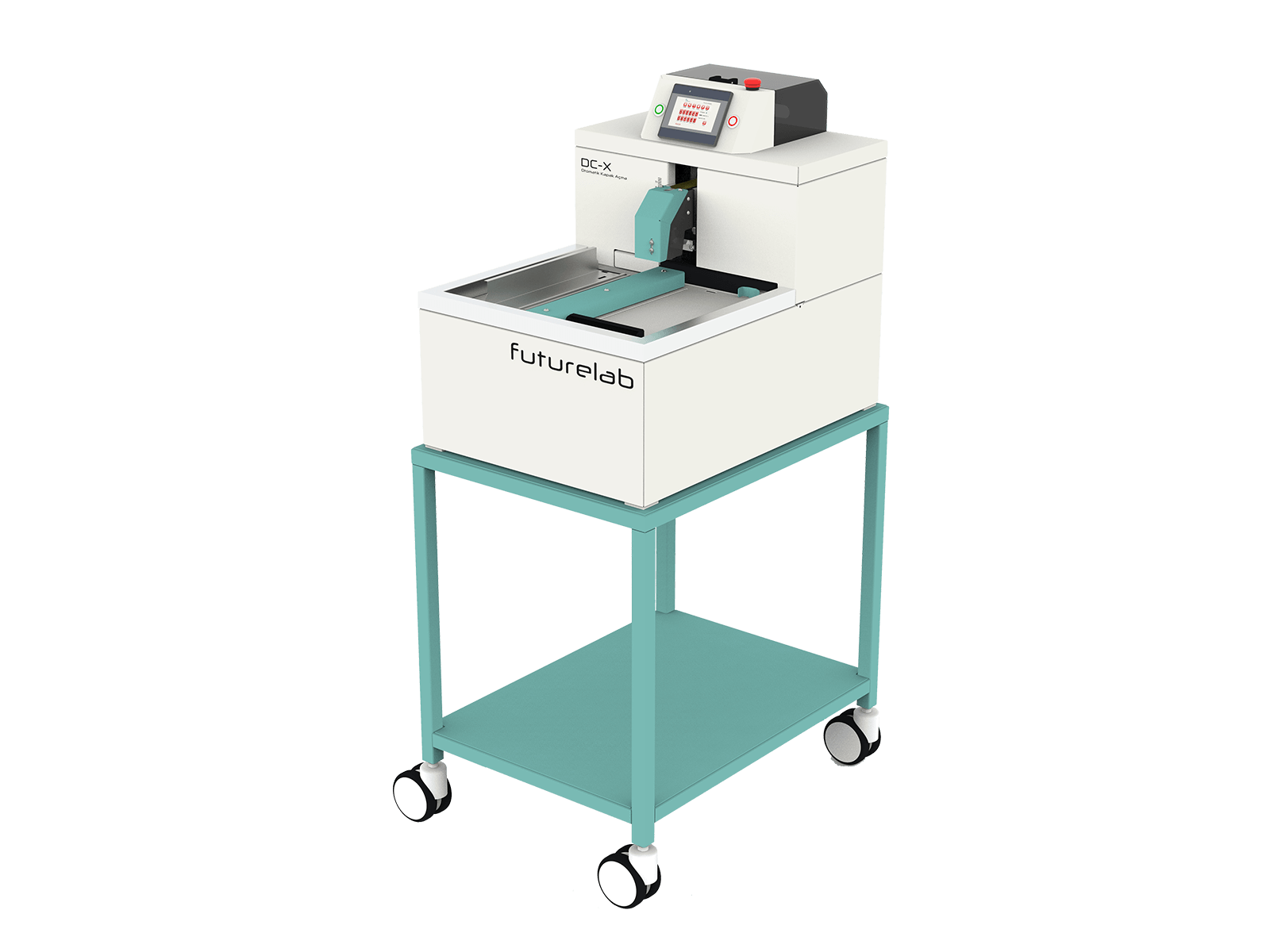

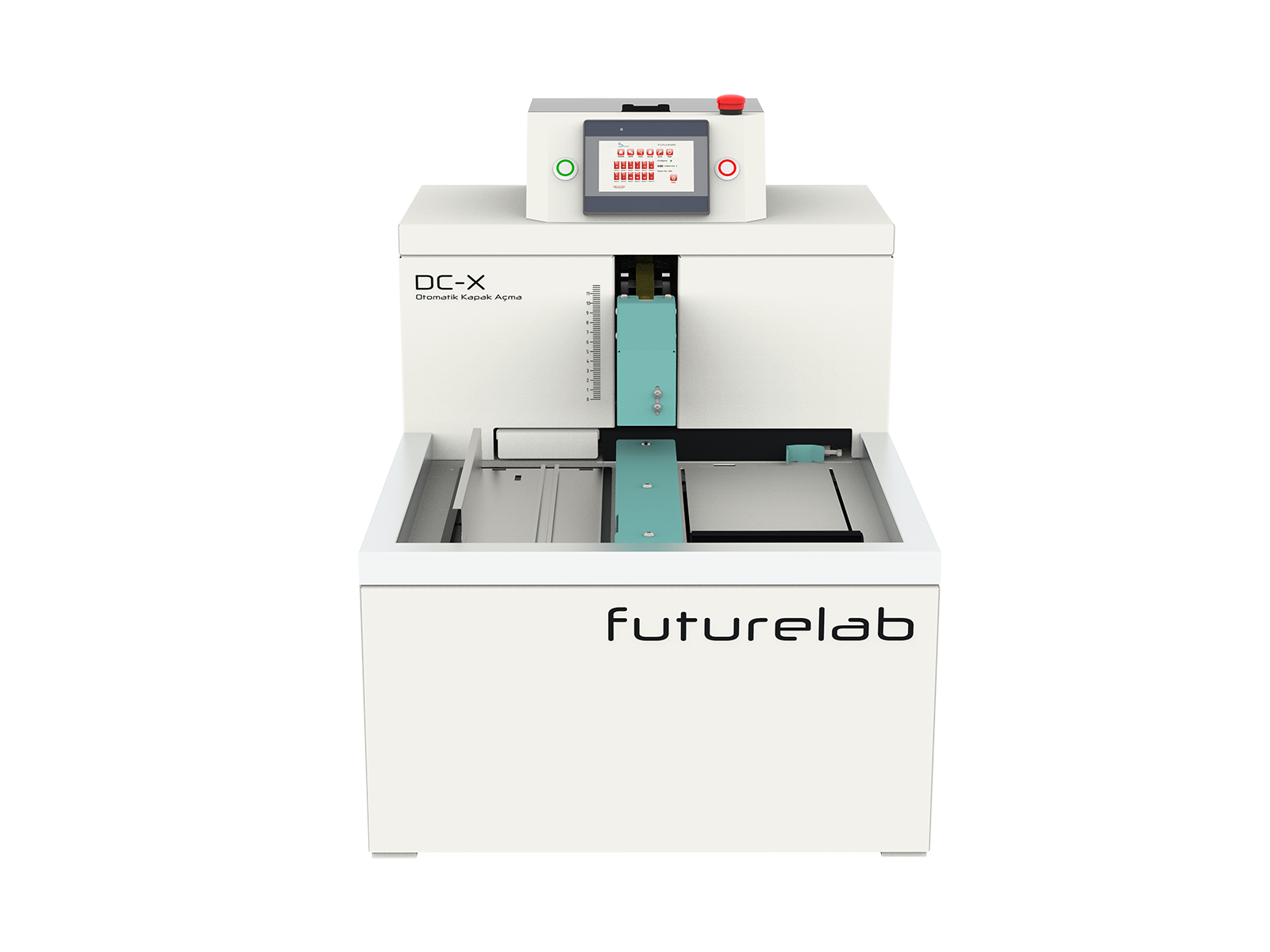

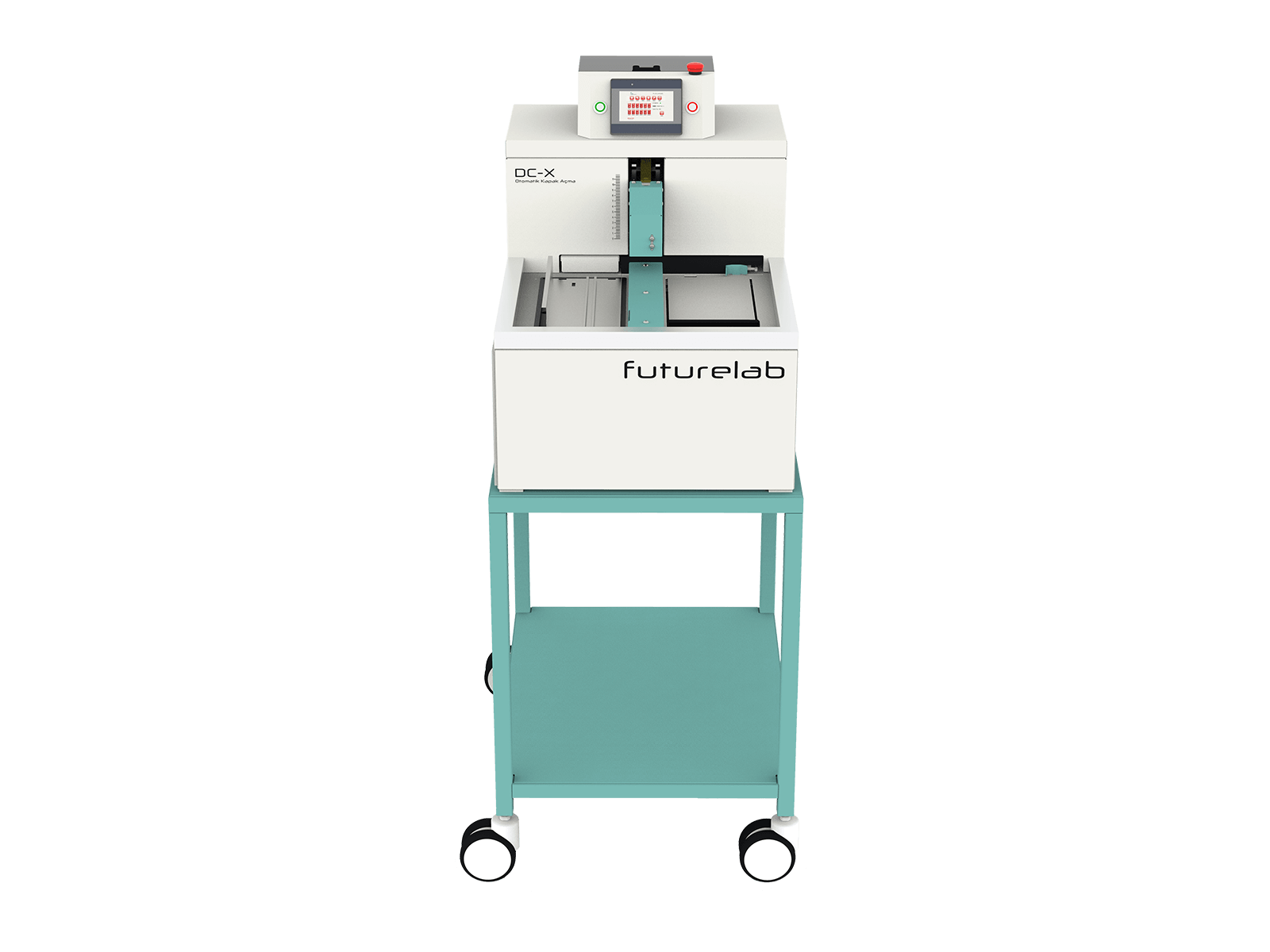

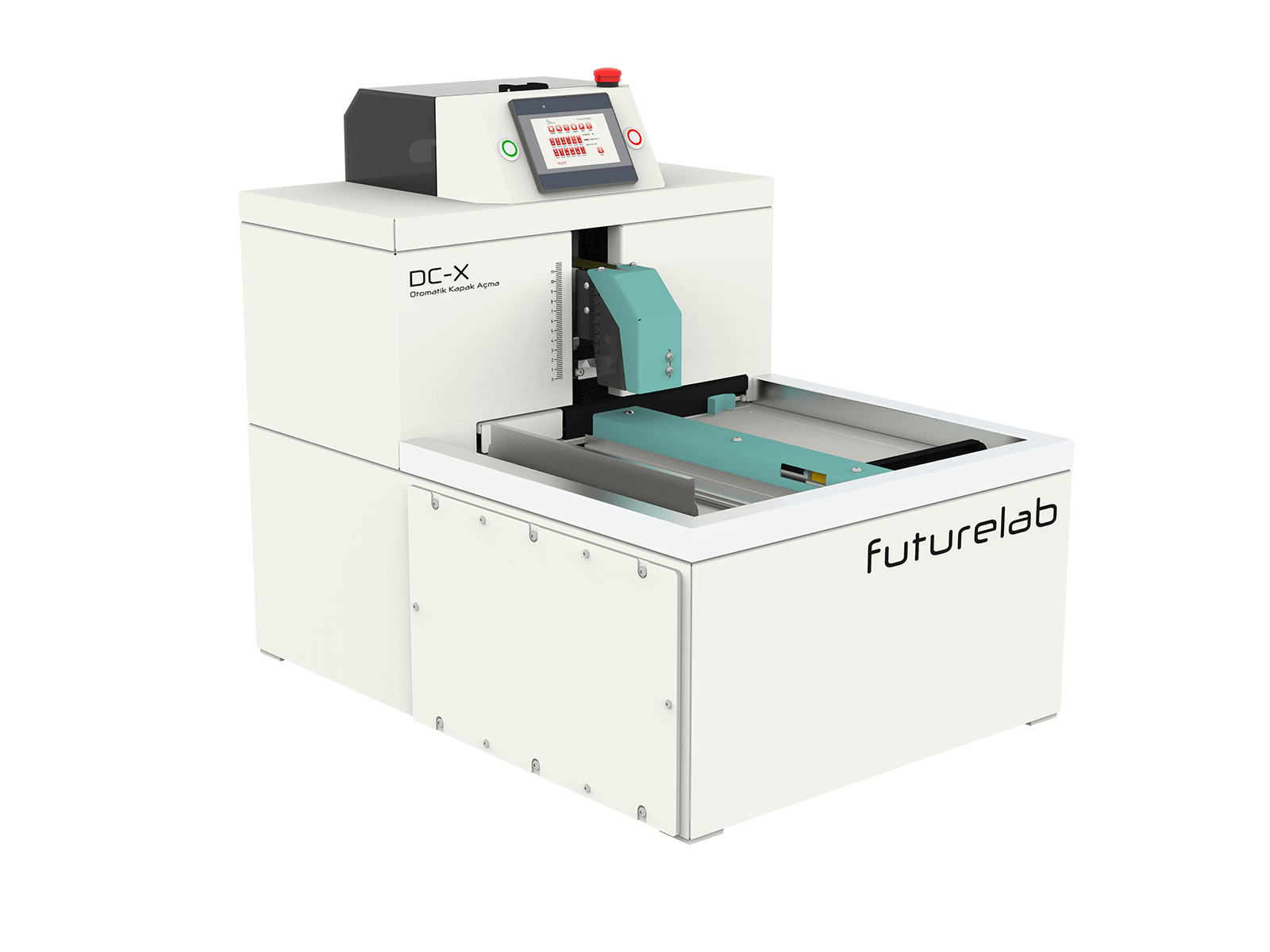

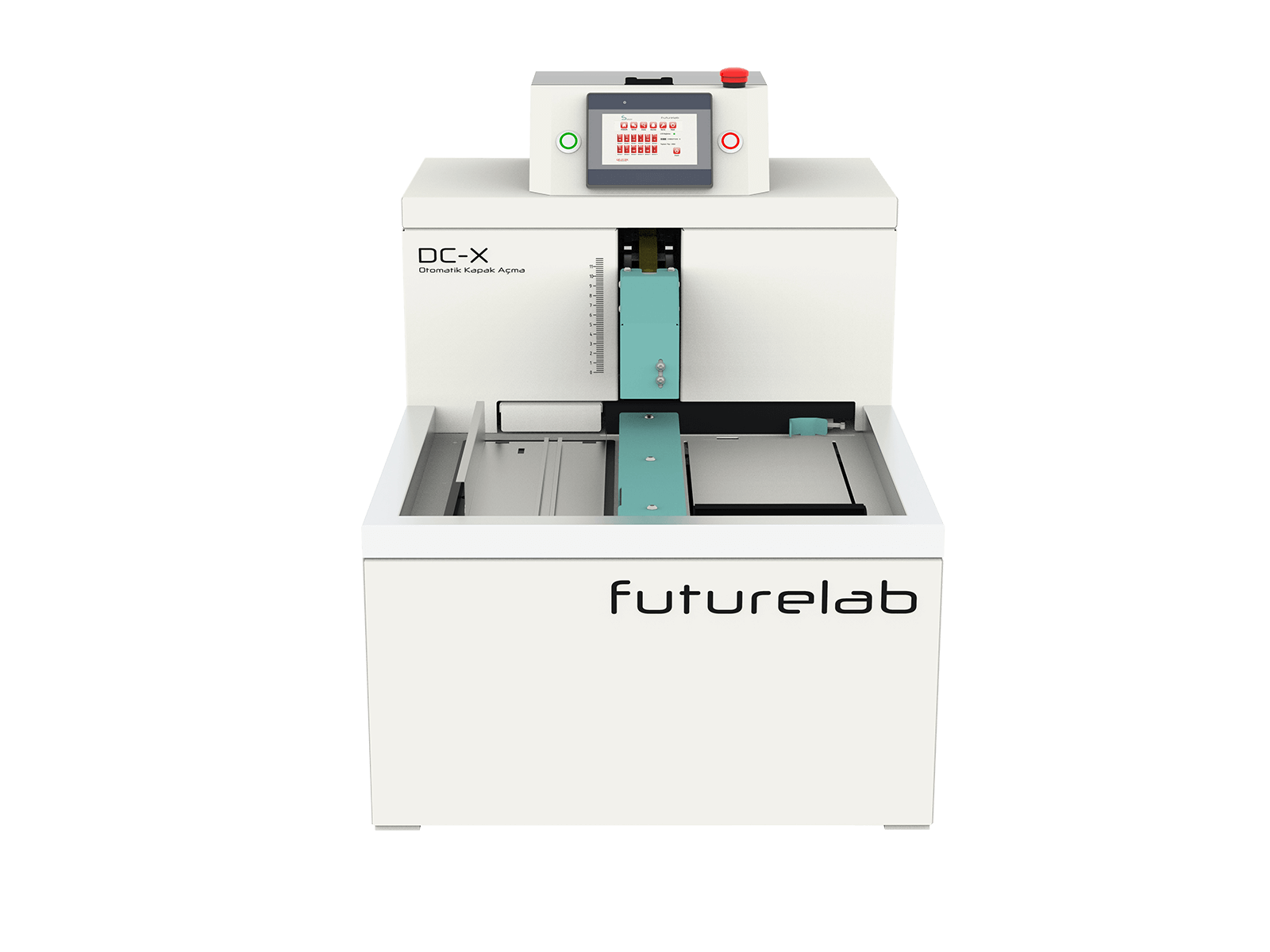

Futurelab DC-X is an automatic tube decapper that is compatible with all types of analyzer original racks.

Technicial Specifications

The Futurelab DC-X is an automatic tube decapper designed to safely and efficiently remove caps from blood sample tubes. It is compatible with all types of original analyzer racks and can handle cylindrical tubes ranging from 8-19 mm in diameter and 72-120 mm in length. The system is fully automated, allowing for easy integration into existing laboratory setups. It processes up to 2000 tubes per hour, reducing manual labor and the risk of contamination. The compact design ensures minimal space usage, and the DC-X guarantees sample integrity, faster processing times, and improved lab efficiency. It is an ideal solution for modern medical laboratories that require a reliable and effective tube decapping system.

Available Tubes Diameter: 8 to 19 mm Length 72 to 120 mm
Tube Loading Continuous tube, Rack loading.
Tube Loading Capacity 15 Rack queue
Processing Speed 200 Tube / Hour
Tube on-hold Capacity 15 Rack queue
User Interfaces Colored Touchscreen
Dimensions 500(W) x 700(D) x605 (H) mm
Weight 39 kg
Power Source 100-240V +- 10%, 50 /60 Hz
Power Consumption 200 VA
Certificates CE

Available Tubes

Rack Capacity

Tray Unit

Decapping

Fast Processing

User Interface

Promotion Film
